The Foundations, Patterns and Components hold on every SCADYS display. The Platforms pages say what changes from one product to the next: the panel, the window, the touch controller and how far each platform can carry the design.

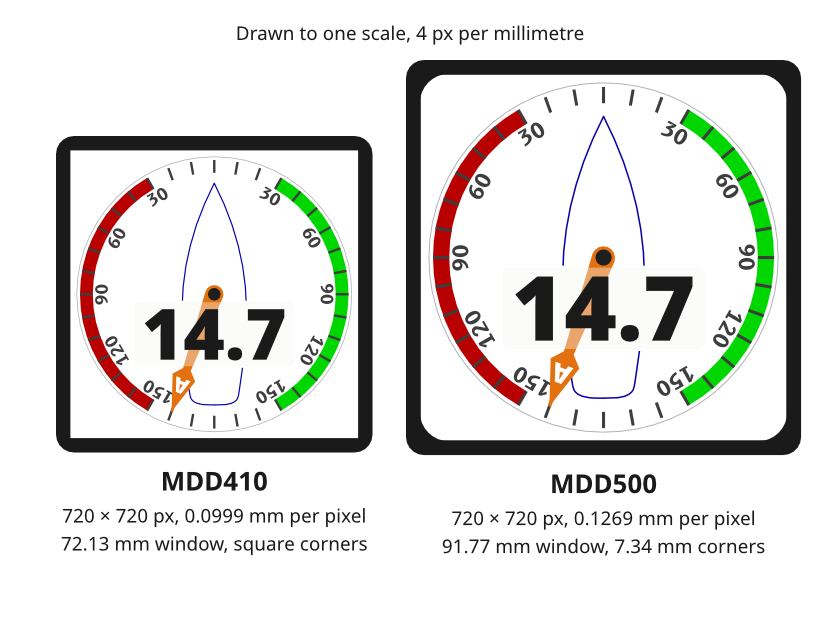

The MDD410 and the MDD500 drawn to physical scale. Both show the same 720 × 720 pixels. The MDD410 window is square and 72.13 mm across, and the MDD500 window is 91.77 mm across with rounded corners.

Figure 1: One design at two physical sizes.

The products​

MDD400MDD410MDD500
Place in the lineEntry level4 in, high resolution5 in, high resolution
HostESP32-S3ESP32-P4ESP32-P4
DisplayDWIN T5L smart display, DGUS4 in panel, MIPI-DSI5.08 in panel, MIPI-DSI
Pixels480 × 480720 × 720720 × 720
Design scaleTwo-thirdsAs drawn, the design referenceAs drawn, larger
Pixel pitchNot recorded here0.0999 mm0.1269 mm
Visible windowNot recorded here72.13 mm square, square corners91.77 mm square, 7.34 mm corner radii
BrightnessLower1,000 nit1,100 cd/m² typical
TouchDWIN touchscreenGoodix GT911Jadard JD9365TX in-cell
RenderingDGUS pages and imagesLVGLLVGL
  • Source. MDD400, MDD410 and MDD500 product identity, SCY-PROD-NOTE-MDD400-001, SCY-PROD-NOTE-MDD410-001 and SCY-PROD-NOTE-MDD500-001. ux/specs/README.md and ux/specs/pages/common.md, canvas and safe area. ux/specs/interaction/touch.md, water and spray.

Pages​

PageCovers
MDD400The DWIN DGUS platform and what it cannot show
MDD410The design reference
MDD500The larger panel, its rounded window and its in-cell touch
Mobile appA placeholder for the planned SCADYS mobile app
