Typography

Two open-licence typefaces carry every MDD page. Noto Sans Black sets the large data values, and B612 Bold sets the dial numbers, labels and units. Every piece of text takes a named type role, which fixes its size and its typeface.

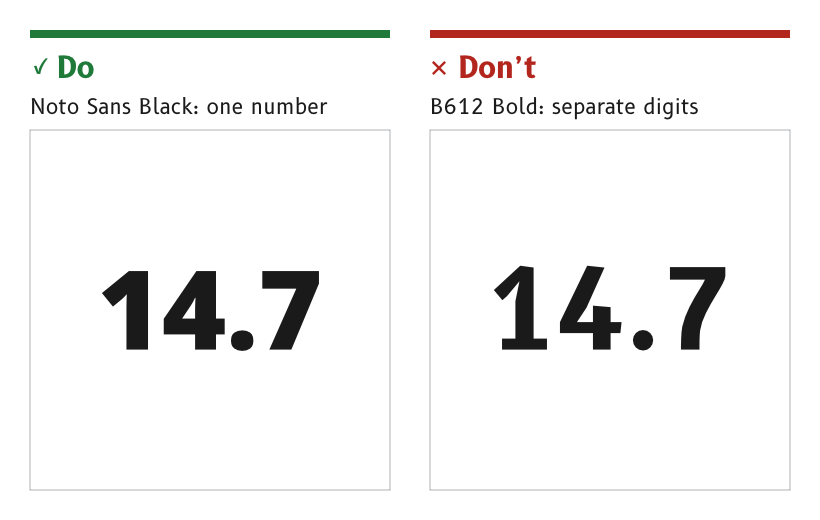

Do: a large value in Noto Sans Black, whose digits read as one block. Don't: the same value in B612 Bold, whose wide spacing breaks it into separate digits.

Figure 1: Large values use Noto Sans Black.

Set large data values in Noto Sans Black​

A large data value, such as the wind speed inside the wind dial, is set in Noto Sans at weight 900, Black.

  • Reason. At large sizes the tight digits of Noto Sans Black read as one number. B612 is spaced wide for cockpit legibility, and in a large number that spacing breaks it into separate digits. Noto Sans Black is also the closest open-licence match to Segoe UI Black, which proved legible at sea on the MDD400.
  • Source. ux/specs/pages/common.md, type roles. Font selection, SCY-SW-NOTE-FONTS-001.

Set dial numbers, labels and units in B612 Bold​

Dial numbers, cell and page labels, units and the touch controls that use them are set in B612 Bold.

  • Reason. B612 was designed for aircraft cockpit screens and sets every character distinctly, which suits short labels and numbers read at an angle around a dial.
  • Source. ux/specs/pages/common.md, type roles. ux/specs/pages/wind.md, dial numbers. Font selection, SCY-SW-NOTE-FONTS-001, citing the B612 project.

Use a type role, never a free size​

Every piece of text takes one of the roles below. The sizes are font sizes in pixels on the 720 × 720 design canvas.

RoleSizeTypefaceUse
value-xl240 pxB612 SCADYS Heavy 20, for nowThe single main value of a page, such as the compass heading
value-l177 pxNoto Sans BlackThe main value inside a dial, such as the wind speed
value-m120 pxB612 SCADYS Heavy 20, for nowValues in the smaller data cells
label44 pxB612 BoldCell and page labels, such as HDG, COG and AWS
unit44 pxB612 BoldUnits, such as °M, °T, kt and nm
dial72 pxB612 BoldNumbers on dial cards
letter72 to 96 pxB612 BoldLetters on needles and pointers, such as A and T
  • Page departures. A page spec may set its own size for a role, and says so. The wind page sets its dial numbers at 42 px, and cuts the A out of its needle in Noto Sans Black at 52 px, because the B612 A has an awkward skewed top.
  • Reason. A fixed set of roles keeps the same kind of text the same size on every page, so the eye learns where to look.
  • Source. ux/specs/pages/common.md, type roles. ux/specs/pages/wind.md.

Use digits of equal width​

Every typeface used for values has digits of equal width by default, without an OpenType feature.

  • Reason. The LVGL font converter does not apply OpenType features, so a typeface that needs the tabular-figures feature for equal digits would have to be remapped before conversion. Noto Sans and B612 both have equal digits by default. Equal digits are what let a value change without moving, as described under Motion.
  • Source. Font selection, SCY-SW-NOTE-FONTS-001, the candidates.

Size type in whole pixels​

Font sizes are whole pixels, and text baselines sit on whole-pixel rows.

  • Reason. A fractional size or baseline renders soft on the panel, because each glyph edge is spread over two rows of pixels.
  • Source. ux/design/README.md, "Draw from scratch on whole pixels".

Use only open-licence typefaces​

Every typeface embedded in firmware carries a licence that permits embedding. Noto Sans and B612 are both under the SIL Open Font License 1.1. A modified typeface takes a distinct name and keeps that licence.

  • Example. B612 SCADYS Heavy is a heavier derivative of B612 Bold, made by thickening the Bold outlines, and is named to keep it apart from the original.
  • Reason. Segoe UI carried every in-service MDD400 page, but it is licensed for use on Windows, not for embedding in a product.
  • Source. Font selection, SCY-SW-NOTE-FONTS-001. The fonts and their licences are in ux/fonts/.
Not yet ruled
  • The typeface of value-xl and value-m. They stay in B612 SCADYS Heavy 20 until they are judged against Noto Sans Black on the panel.
  • The final choice of every role, on the MDD500 panel at 1 to 2 m, in direct sun and at night, tracked as SCY-SW-ISSUE-UXPANELTEST-001.

References​

  1. Google, Noto Sans, Google Fonts.
  2. PolarSys, B612 font family, GitHub.
  3. SIL International, SIL Open Font License 1.1, 2007.
