Legibility

An MDD display is an instrument, not a chart plotter. It shows the same page for days, usually with nobody touching it, and it is read in a glance from a helm or a bunk. Every other rule in these guidelines serves that glance.

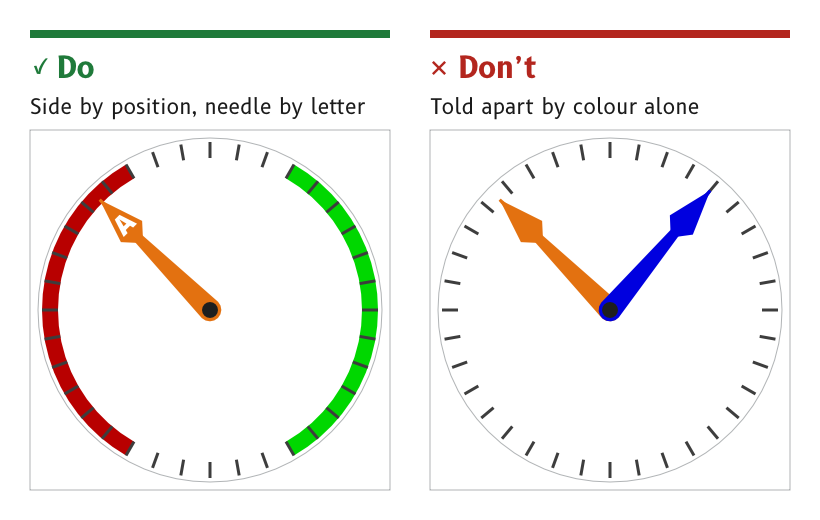

Do: port and starboard told apart by position, and the needle by its letter. Don't: two needles told apart by colour alone.

Figure 1: Colour is never the only cue.

Design for a glance at 1 to 2 m​

A page is designed to be read at 1 to 2 m, in direct sun and at night, by someone who looks at it for a moment and looks away.

  • Reason. Nobody studies an instrument at sea. A value that needs a second look has failed, and a second look at night costs dark adaptation.
  • Check. A page is judged on the real panel at 1 to 2 m, by day and at night. A desktop monitor is not a substitute, because it cannot show the night colours at the panel's brightness.
  • Source. ux/design/README.md, "Look first, rules second". Font selection, SCY-SW-NOTE-FONTS-001.

Make the data the brightest element​

The data value is the brightest element on a page that is not an alert, by day and at night.

  • Reason. The eye goes to the brightest thing first. A label, a frame or a decoration that outshines the value it belongs to pulls the glance away from the one thing it came for.
  • Exception. An alert may outshine the data, because an alert is rare and has to be seen.
  • Check. tokens/render_swatches.py fails the palette if any night colour other than an alert is brighter than the data colour.
  • Source. ux/tokens/palette.json, rules. Palette rulings, SCY-SW-DECISION-PALETTE-001.

Never use colour as the only cue​

Every meaning carried by colour is carried by something else as well.

  • Port and starboard are coded by position, port on the left and starboard on the right, as well as by red and green.
  • Needles and pointers are coded by a letter, such as A for apparent wind and T for true wind, as well as by colour.
  • Alerts are coded by the triangle shape, as well as by yellow.
  • Reason. Colour vision varies between people, the night palette dims port and starboard almost to decoration and sunlight washes colour out. A cue that survives without its colour survives all three.
  • Source. ux/tokens/palette.json, rules.

Let legibility win over effects​

Where a realistic effect costs readability, readability wins. Depth, lighting and shading stay where they help the eye and give way where they compete with the data.

  • Example. On the wind page the apparent wind needle passes behind the wind-speed readout instead of across its digits, as described under Materials and depth.
  • Reason. An instrument that looks like an analogue gauge but reads worse than a plain number has failed at its job.
  • Source. UX concept register, SCY-SW-NOTE-UXCONCEPTS-001, "Legibility wins over skeuomorphism".

Use a white background by day​

The day background is white, #FFFFFF.

  • Reason. The display standard for electronic charts, IHO S-52, records in s4.2.5 that a maximum-luminance background gave the best contrast under near-washout in an outdoor sun test.
  • Source. ux/tokens/palette.json, role background. Palette derivation, SCY-SW-NOTE-PALETTE-001, citing IHO S-52 Edition 6.1.1.

Judge by eye, then write the rule​

Proportions, white space and balance are judged by eye on a complete mockup and on the panel. Spacing and size rules are written afterwards, from pages that already look right.

  • Reason. Rules written before a page exists tend to produce a page that obeys them and still looks wrong.
  • Source. ux/design/README.md, "Look first, rules second".
Not yet ruled

The draft palette and the font roles are still to be judged on the MDD500 panel at 1 to 2 m, in direct sun and in the dark. The test is tracked as SCY-SW-ISSUE-UXPANELTEST-001.
